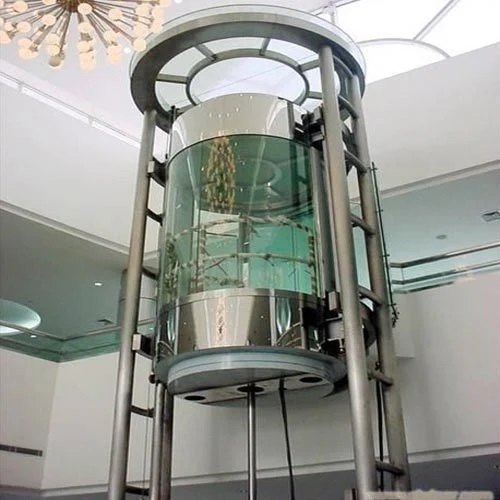

About Hydraulic Lifts
Hydraulic elevators are a crucial part of modern urban infrastructure, providing efficient and reliable vertical transportation in buildings of all sizes. These elevators have a smooth and quiet operation which enhances the cabin experience for the passengers. With its space-saving design and versatility, a hydraulic lift is a perfect solution for a reliable vertical transportation in a modern establishment.
Request a Quote

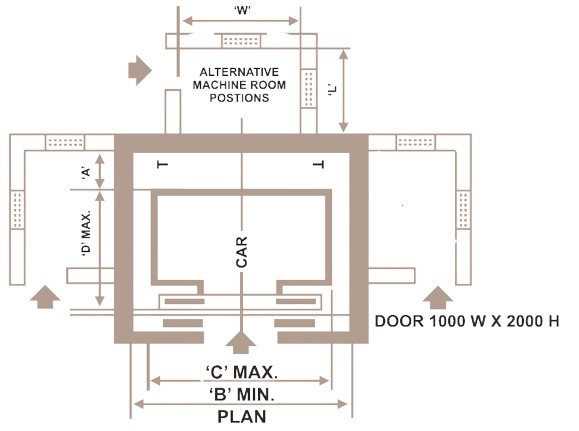

Table of Dimension
| S. NO. | Capacity PERS. KG. | |
|---|---|---|
| 1 | 4 | 272 |
| 2 | 5 | 340 |
| 3 | 6 | 408 |
| 4 | 8 | 544 |
| 5 | 10 | 680 |
| 6 | 13 | 884 |
| 7 | 20 | 1360 |
| 8 | - | 1000 |
| 9 | - | 2000 |
| Type of Doors | 'A'+25 +O (mm) | 'B' MIN. (mm) | 'C' MAX. (mm) | 'D' MAX. (mm) | 'E' MAX. (mm) |
|---|---|---|---|---|---|
| MD | 365 | 1200 | 960 | 1200 | 2380 |
| AD | 365 | 1200 | 960 | 1200 | |
| MD | 365 | 1200 | 960 | 1200 | 2380 |
| AD | 356 | 1360 | 1200 | 1360 | |
| MD | 365 | 1200 | 960 | 1200 | 2380 |
| AD | 365 | 1360 | 1200 | 1360 | |
| MD | 365 | 1360 | 1200 | 1360 | 2380 |
| AD | 370 | 1360 | 1200 | 1465 | 2350 |
| MD | 370 | 1700 | 1200 | 1465 | 2350 |
| AD | 370 | 1700 | 1200 | 1465 | |
| MD | 445 | 2660 | 1700 | 1800 | 2350 |
| AD | 445 | 2660 | 1700 | 1800 | |
| MD | 490 | 2400 | 2050 | 2200 | 2450 |
| AD | 490 | 2400 | 2050 | 2200 | |
| MD | 445 | 2660 | 1700 | 1800 | 2350 |
| - | - | - | - | - | |
| MD | 490 | 2400 | 2050 | 2200 | 2450 |
| - | - | - | - | - |
| 'W' (mm) | 'L' (mm) |
|---|---|
| 2000 | 2000 |
| 2000 | 2000 |
| 2000 | 2000 |
| 2000 | 2000 |
| 2000 | 2000 |
| 2200 | 2200 |
| 2500 | 2500 |
| 2000 | 2000 |
| 2000 | 2000 |
