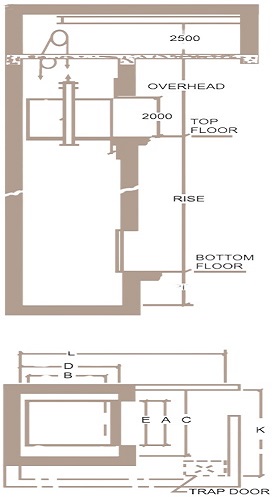

Table of Demenision

LOAD CAR-INSIDE LIFT-WELL ENTRANCE MACHINE ROOM
KG A B C D E K L
500 1100 1200 1900 1600 1100 2500 4100
1000 1400 1800 2300 2200 1400 2500 4700
2000 1700 2500 2800 2900 1700 2600 5400
3000 2000 3000 2900 3420 2000 2900 5900
4000 2500 3000 3400 3400 2500 3400 5900
5000 2500 2600 3500 4300 2500 3400 6800
LOAD KG SPEED MPS PIT DEPTH OVER HEAD
500-3000 0.25-1.0 1600 4800
4000-5000 2.5 2200 7400
