TYPE AND NO. OF VEHICLE LOAD
KGS.
3 TWO WHEELERS 500
4 Two Wheelers 750
Small Cars 2000
Mid Sized Cars 2000
Luxury Cars 3000
S.U.V 4000
l.C.V.Bus 100000

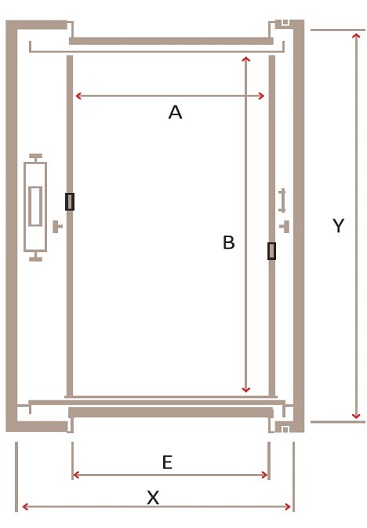

CAR INSIDE (A x B) LIFT SHAFT ONE SIDE OPEN (X x Y) LIFT SHAFT TWO SIDE OPEN ENTRANCE (E)
Width x Length Width x Length Width x Length Width x Length
1200 X 2400 2000 X 2800 2000 X 2800 1000 X 2000
1500 X 2400 2300 X 2800 2300 X 2480 1300 x 2000
2300 x 5000 3050 x 5250 2900 x 5080 2100 x 2000
2400 x 5100 3150 x 5350 3200 x 5200 2200 x 2000
2700 x 5400 3450 x 5800 3500 x 5500 2400 x 2200
3000 x 5750 3800 x 6050 3800 x 5850 2400 x 2200
3500 x 7300 4400 x 7700 4400 x 7400 3000 x 3000
