Table of Demenision

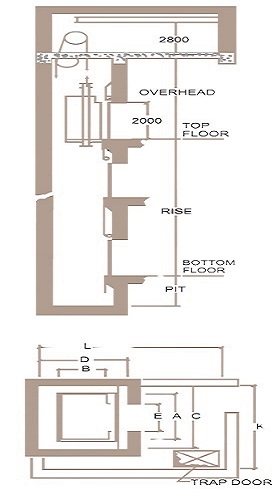

LOAD CAR-INSIDE LIFT-WELL ENT RANCE MACHINE ROOM
PERSONS KG A B C D E K L
4 272 810 920 1200 1350 700 1650 3500
5 340 1150 835 1600 1200 760 1600 3350
6 408 1150 960 1600 1525 700 1600 3350
8 544 1300 1100 1800 1800 800 2250 4100
10 680 1350 1300 1800 2000 800 3300 4500
13 340 1150 835 1600 1200 760 1600 3350
16 340 1150 835 1600 1200 760 1600 3350
20 340 1150 835 1600 1200 760 1600 3350
SPEED MPS PIT DEPTH OVER HEAD
UPTO 1.5 1600 4800
OVER 2.5 2600 6700
